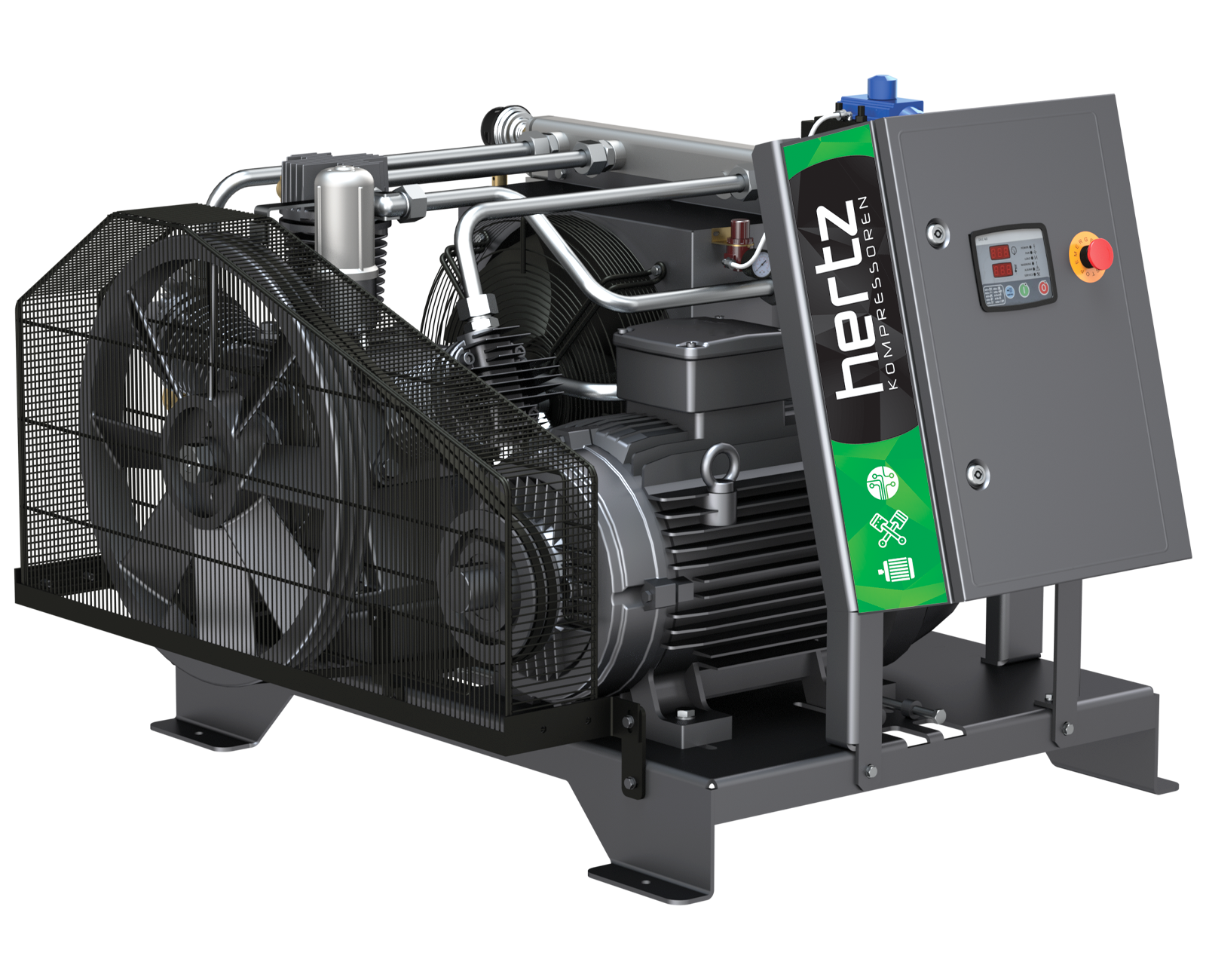

HPC BOOSTER GP SERIES [NEW]

Get A Quote Contact Download Share

10-40 HP 218-580 psi 74-413 cfm

Oil Injected, Belt Driven

Reciprocating Air Compressors

We provide reliable and high-performance air solutions for the PET bottling and food and beverage industries requiring high compression.

Advantages

• Durable sliding bearings prolong maintenance periods and keep maintenance costs low.

• Next gen booster series offers high performance with the outstanding technology and design.

• Oil-trap air filtration system provides cleaner air.

• Energy-saving advanced cooling and lubrication systems.

• Integrated oil pump driven by the main motor lubricates the pistons, bearings and pins efficiently.

• Improved vibration level helps to keep maintenance costs down.

General Features

• Electric motor protection to prevent overload

• Dedicated discharge system to prevent oil discharge from blow-off valve

• Energy-saving Load/Unload System

• Integrated control panel for user-friendly operation

• Automatic discharge system for loadless start

• Air-cooled compressor units

• Gear-driven oil pump

• Star/delta motor starter

• Long life thanks to low speed operation

• Optional soft starter

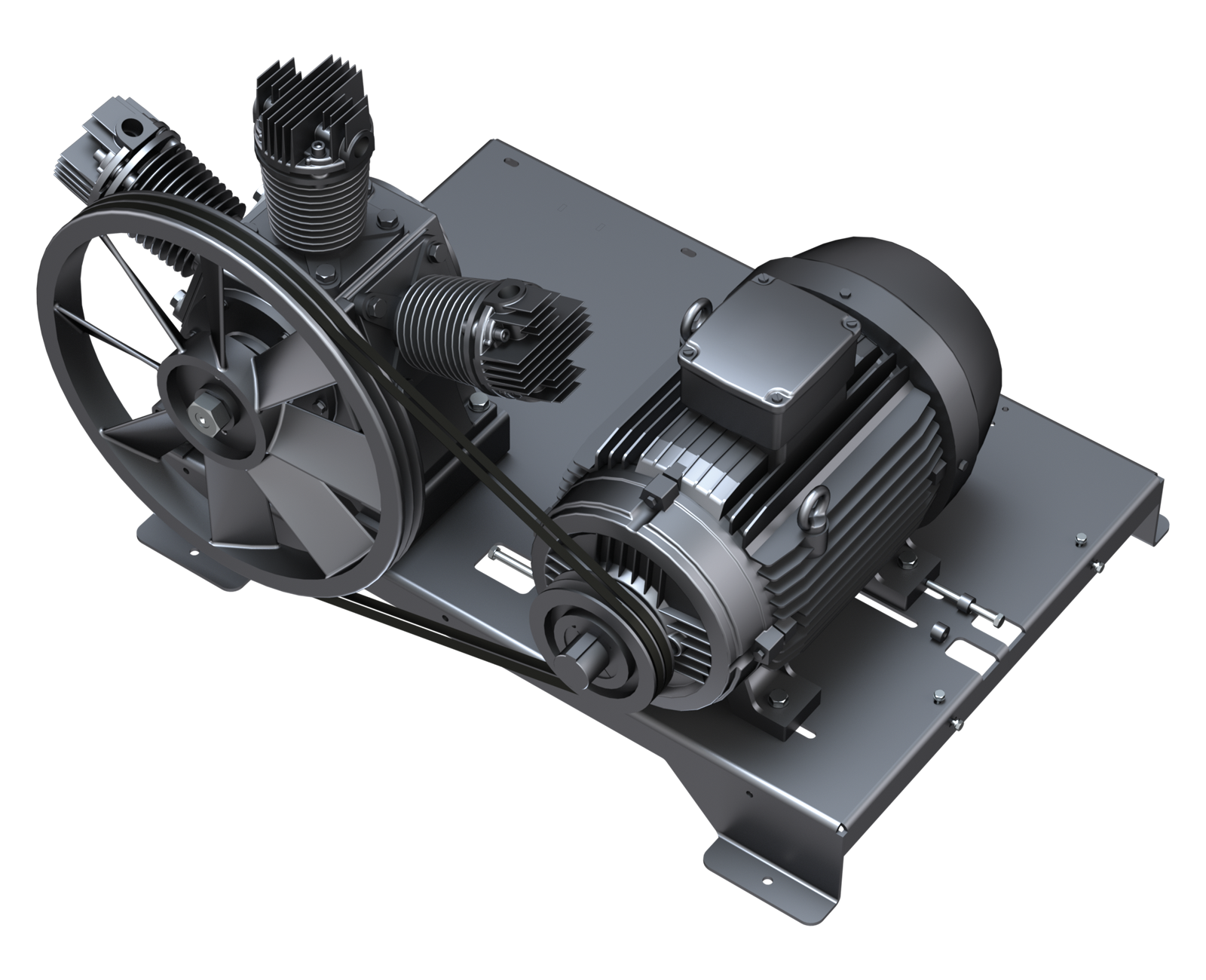

Main Motor and Drive System

• IE3 efficiency-class electric motors

• Belt pulley drive system

• Easy belt tensioning system

• Specially designed fan type cast pulley

• Star/delta motor starter

• Special loadless start system and automatic discharge system for loadless start

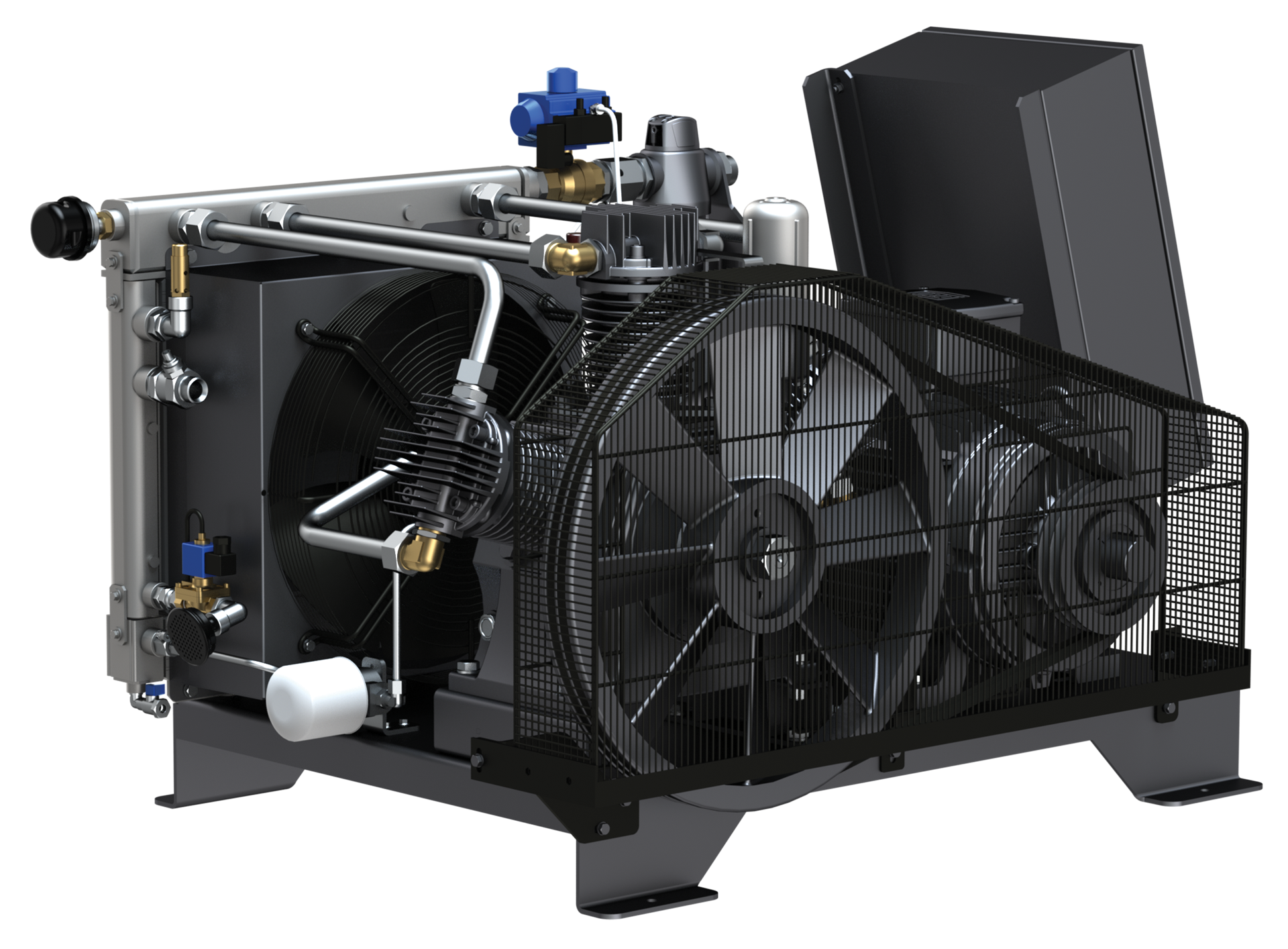

Compressor Block

• Cast iron cylinder with cooling fins and special aluminium alloy top heads

• Specially designed long-life and high-speed stainless steel concentric valves

• High-strength cast iron sump

• Dynamically balanced cast steel crankshaft and counterweight

• Special aluminium alloy pistons and iron cast connecting rods

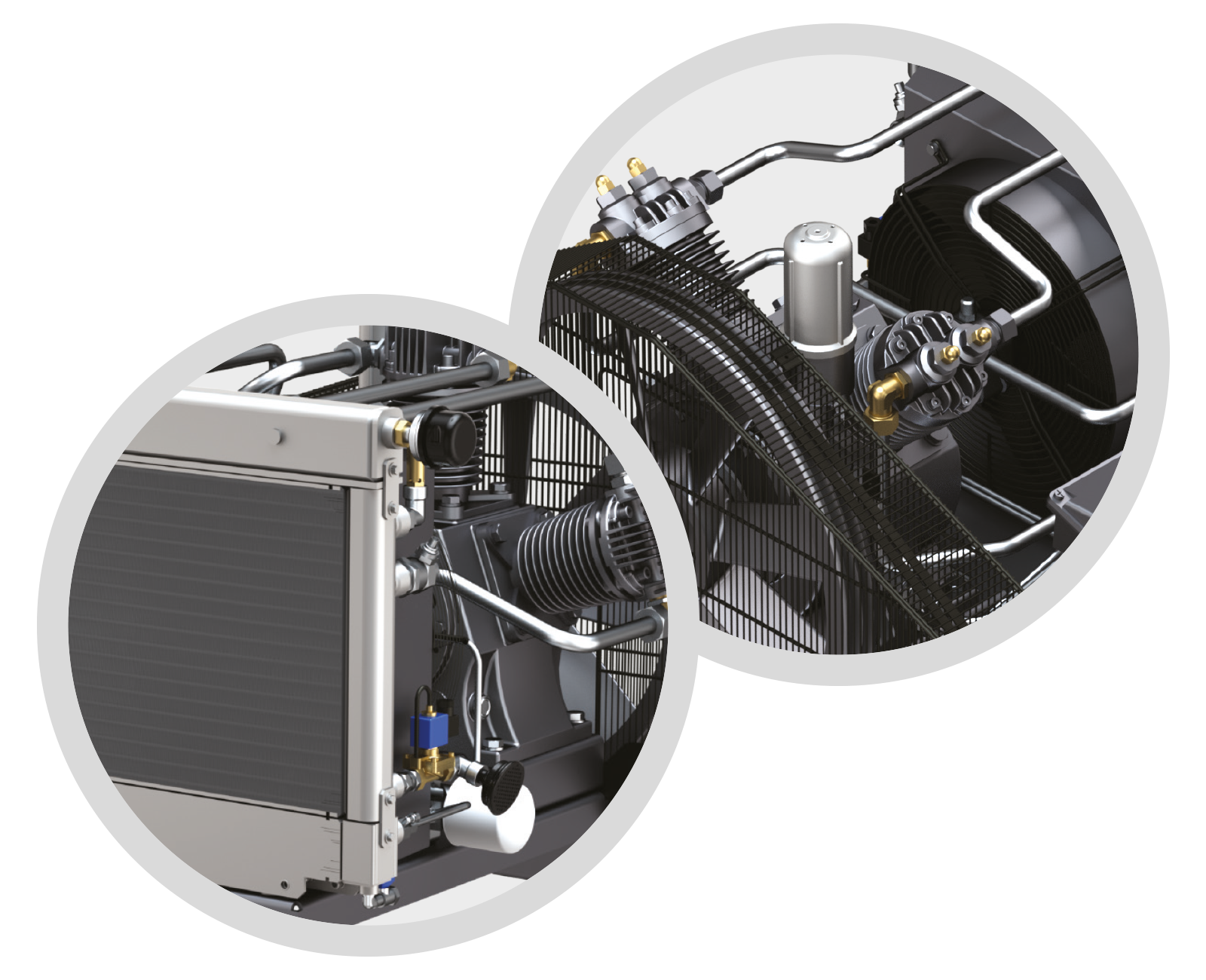

Safety Systems

• Inlet air control system

• High-pressure switch

• Manual condensate drainage valve

• Integrated check valve in air outlet line

• Belt pulley housing fence

• Outlet pressure manometer

• High pressure relief valve

• Oil pressure control

• Integrated particulate filter in inlet air line

• By-pass line for protection against high oil pressure

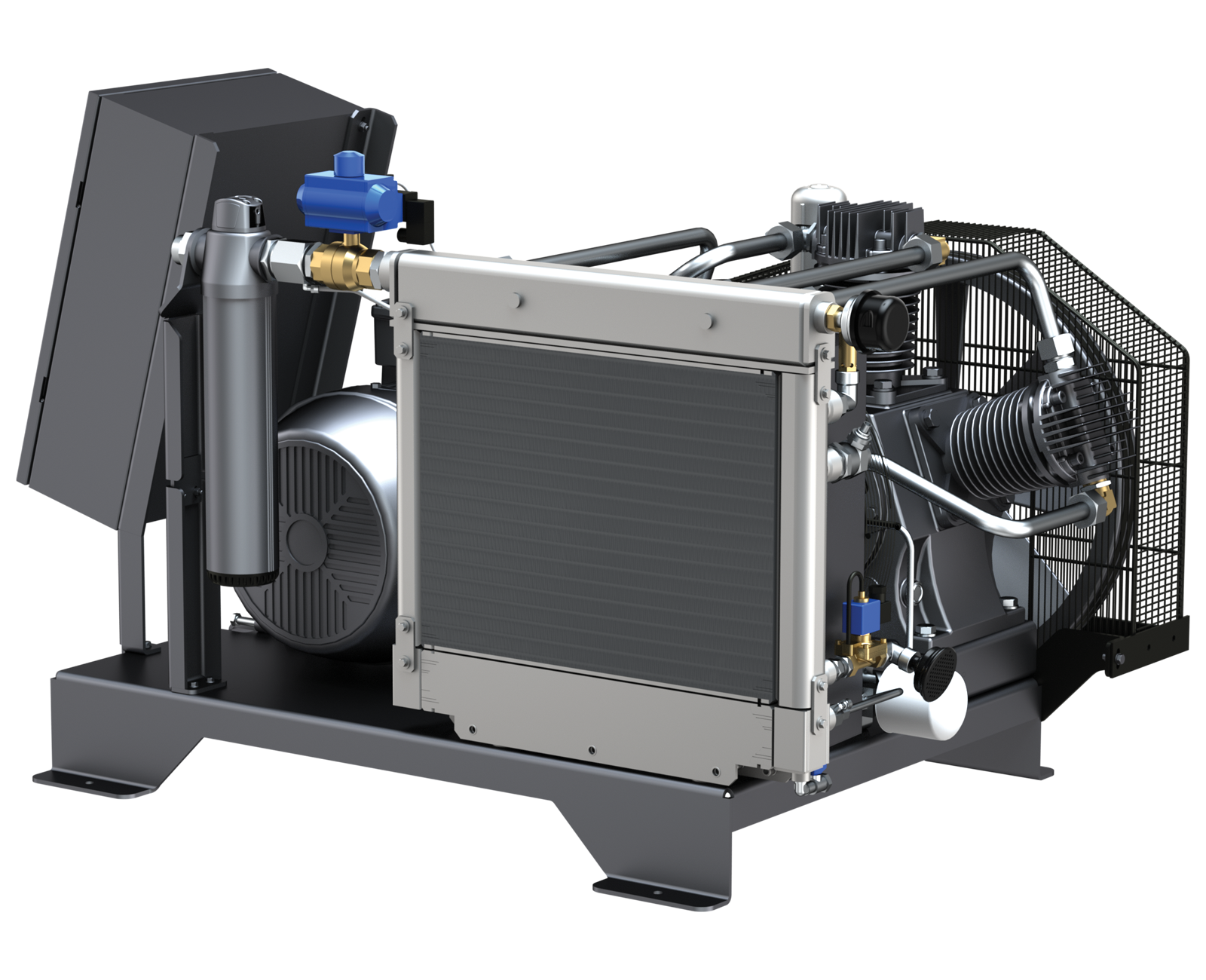

Cooling Systems

• 2-section aluminium radiator for air and oil cooling

• Bar-Plate outlet air cooling radiator

• Integrated oil and air cooler with inlet collector

10-40 HP 218-580 psi 74-413 cfm

TECHNICAL SPECIFICATIONS

Model	Working Pressure				Inlet Capacity								Motor	Connection	Dimensions [in.]			Weight
Model	Minimum psi - bar		Maximum psi - bar		100 psi cfm - m³/min		125 psi cfm - m³/min		150 psi cfm - m³/min		175 psi cfm - m³/min		HP/KW	Connection	Length	Width	Height	lbs
HPC BOOSTER 10 GP	218	15	580	40	74	2.1	89	2,5	102	2.89	130	3.67	10/7.5	1" NPT	56.3	39.8	40.4	772
HPC BOOSTER 15 GP	218	15	580	40	87	2.45	106	2.99	119	3.37	152	4.29	15/11	1" NPT	56.3	39.8	40.4	882
HPC BOOSTER 20 GP	218	15	580	40	132	3.75	167	4.73	182	5.15	231	6.55	20/15	1" NPT	56.3	39.8	40.4	904
HPC BOOSTER 25 GP	218	15	580	40	173	4.9	224	6.34	238	6.73	303	8.57	25/18.5	1 1/4" NPT	59	40.4	37.7	970
HPC BOOSTER 30 GP	218	15	580	40	196	5.56	252	7.14	270	7.65	344	9.74	30/22	1 1/4" NPT	59	40.4	37.7	1058
HPC BOOSTER 40 GP	218	15	580	40	236	6.68	288	8.17	324	9.18	413	11.68	40/30	1 1/4" NPT	59	40.4	37.7	1213

- Unit performances measured in reference conditions which are 1 bar absolute air pressure, 0% relative humidity, 20°C inlet air temperature, 71°C thermostatic valve set temperature and use of Smartoil.

- Hertz reserves its rights to make changes in its products and specifications without prior notice.
